Type 70 electric spirit level
Specially adapted to electricians' requirements
Description
Electricians can now save time and effort when marking out sockets and switches. Marking out with this level, horizontally or vertically, can be carried out efficiently in a single step speeding up your workflow. And with its slip-stoppers at both ends this level gives you a secure hold on all surfaces when working. STABILA: innovative solutions for special needs.
Measure and mark out switches and sockets in a single step.
Product advantages
- Comfortably light aluminium rectangular profile with marking holes for electrical installation work.
- Integrated marking holes with standardised spacing to measure and mark hole spacings for switches and plug sockets in a single step (71 mm, in accordance with DIN 49075). No more cumbersome tasks using several measuring tools.
- 120 cm in length with additional useful marking aids, for example, the height of work top plug sockets (1150 mm), the height of switches (1050 mm), the height of sockets (300 mm), datum line marking.
- End caps with an slip-stopper – for a firm seat when marking.
- Plastic end caps protect the profile against impact.
- Coated measuring surface protects delicate surfaces.
- Easy to clean thanks to the smooth sides and electrostatic powder coating.

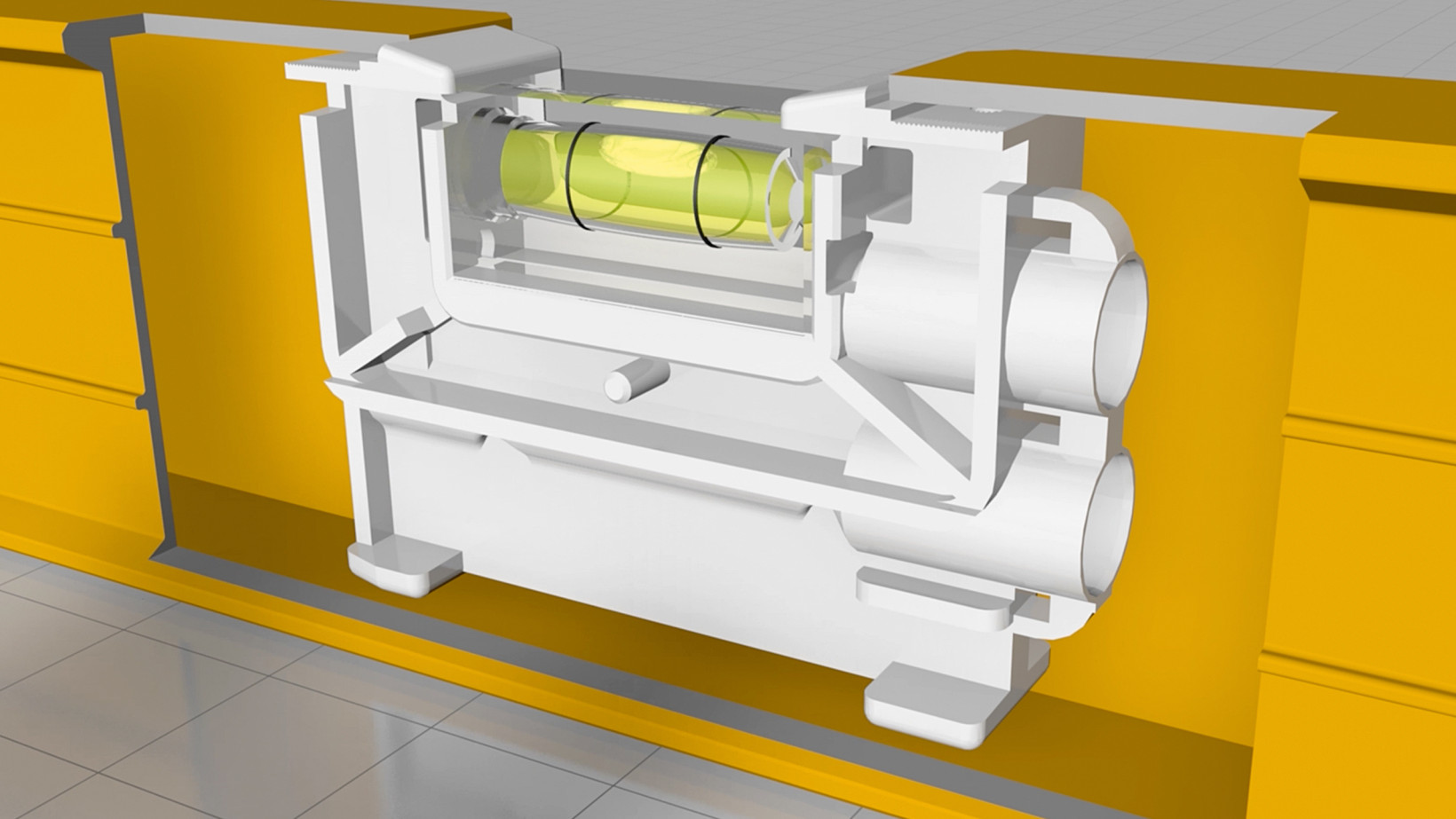

- STABILA installation technology ensures long-term accuracy – measuring accuracy in normal position of ± 0.5 mm/m.
- Equipment: 1 horizontal vial, 1 vertical vial, 1 coated measuring surface, marking holes.
End caps with slip-stoppers – the ideal grip while marking.
Application examples
- Ideal for electrical installation work – when installing switches and plug sockets.
Technical data
Measurement accuracy in normal position
0.50 mm/m
Number of measuring surfaces
1
End caps
Standard, slip-stopper
Product versions
| Length | GTIN-13 code | Item No. |
|---|---|---|
| 43 cm | 4005069161354 | 16135 |
| 120 cm | 4005069161361 | 16136 |
