LAX 60 G cross line laser

Variant

LAX 60 G cross line laser, 3-piece set

Included in delivery

LAX 60 G cross line laser, target plate, belt pouch, 3 x AA 1.5 V batteries

Item No. 20229 GTIN 4005069202293

Super handy. Super visible. Super price. The practical assistant for marking and alignment.

The STABILA LAX 60 G produces an exceptional, impressive line quality thanks to GREENBEAM technology. The bright, razor-sharp laser lines enable precise work even in daylight – with a measuring range of up to 30 m. The compact laser is ready for use immediately and ensures maximum efficiency during marking and alignment work with its long battery life. In manual mode, lines can be flexibly positioned at any angle, while in pulse mode you extend the working area with an optional receiver. STABILA – reliable, high-quality, made for professionals.

Highlights

An especially compact laser with extremely bright, sharp lines.
Precise work at a range of up to 30 m – or up to 80 m in pulse mode with the optional receiver.
Transfer diagonal planes in manual mode.
Long operating time of up to 15 hours.
Flexible positioning thanks to strong magnets and 1/4” thread.

Laser class

2

Output

< 7 mW

Laser wavelength

510 - 530 nm

Self-levelling range ±

4°

Levelling accuracy ±

0.30 mm/m

Measuring range of visible line

30 m

Operating life

15 h

Protection rating

IP 54

Tripod connection

1/4"

Especially compact, battery-powered cross line laser for efficient work on the horizontal and vertical planes.
Precise work with a high levelling accuracy of ± 0.3 mm/m.
STABILA GREENBEAM technology: work directly on extremely bright, sharp green lines – up to a distance of 30 m.
Pulse-modulated lines together with the optional receiver expands the working area to up to 80 m.
Powerful laser diodes: long operating time of up to 15 hours.
Manual mode: position the laser at any inclination with locked pendulum.
Quick self-levelling function – ready to use immediately thanks to pendulum technology.
Simple operation via two buttons.
Shock-absorbent STABILA soft grip casing protects the laser from impact.
Flexible positioning: 1/4" thread for mounting on tripod and rare-earth magnet system for adhering to metal objects.
Includes target plate and belt pouch.
Protection rating IP 54

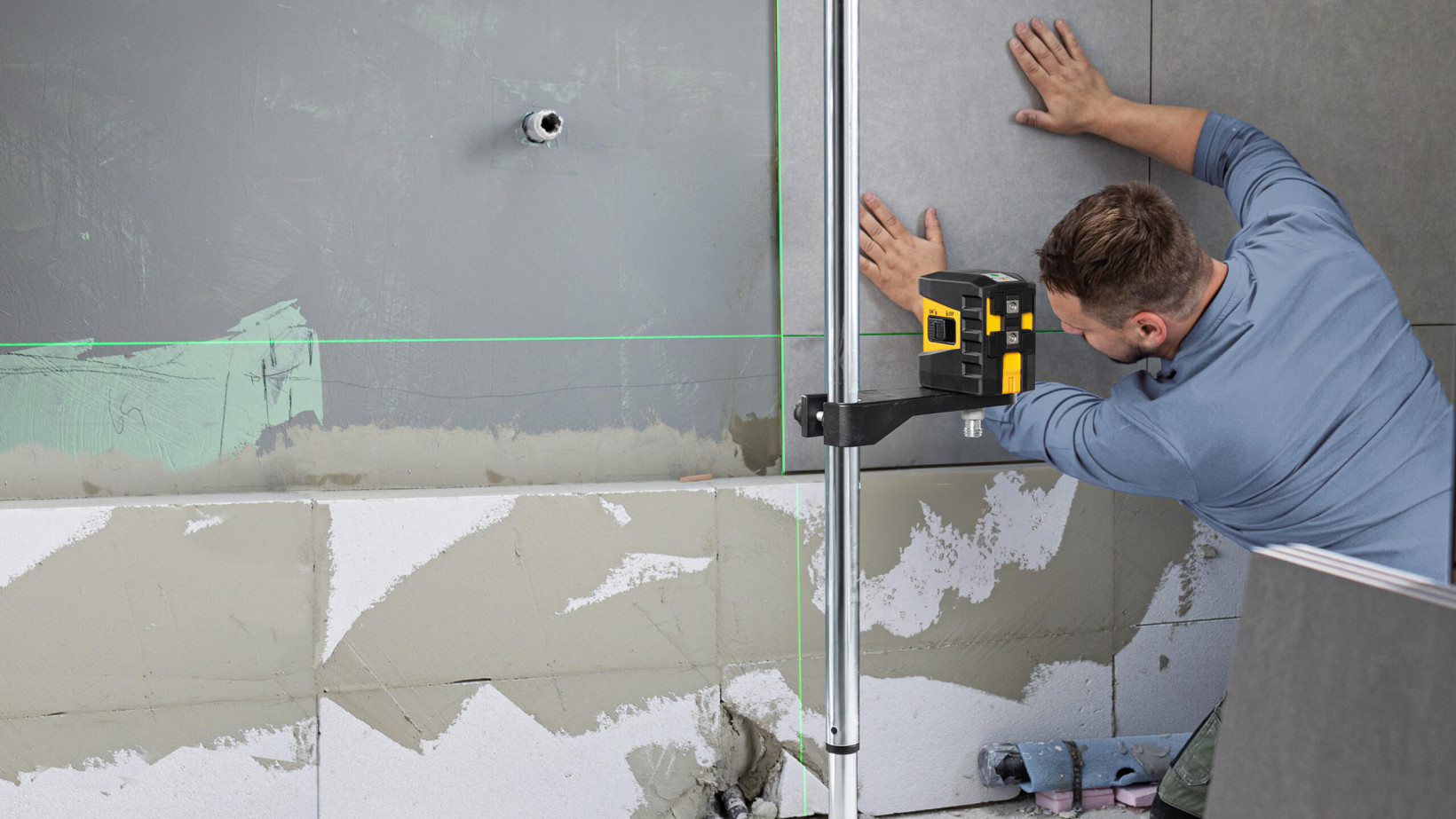

Tiling: lay tile layouts, align and lay floor and wall tiles. Electrical installation: mark switches and plug sockets, align cable ducts horizontally and vertically with one another, align and install light fittings. For installation work in the sanitation, heating and air conditioning sectors: align pipe clips and pipes, lay heating pipes and other pipework, install radiators and sanitary fittings. Joinery: align and mount kitchen cabinets, align worktops. Decorating: masking work, attaching borders with adhesive, wallpapering. Drywall construction: suspending ceilings in combination with a wall bracket.
