TECH 196 DL digital spirit level
Rugged. Waterproof. Calibration-free. Made for extreme challenges.
Description
Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.
ULTRA-PROTECT– optimum protection against dust and water as per IP 67.
Features
- Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.
- ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.

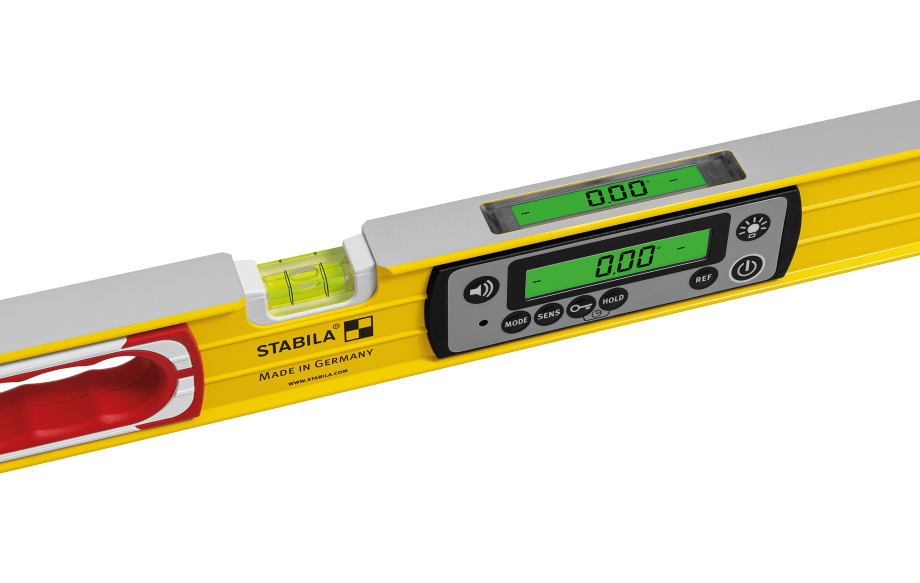

- Optimal read-out: Two digital displays, illuminated at the press of a button.
- Acoustic guidance: For quick alignment of elements without looking at the spirit level – with two different audible signals.
- CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
- The digital display rotates to the reverse position.
- REF-MODE: Take, save and transfer an angle measurement to other elements.
- KEY-LOCK: Keyboard lock to prevent accidental input.
- Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
- ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
- Long operating time: Up to 400 hours.

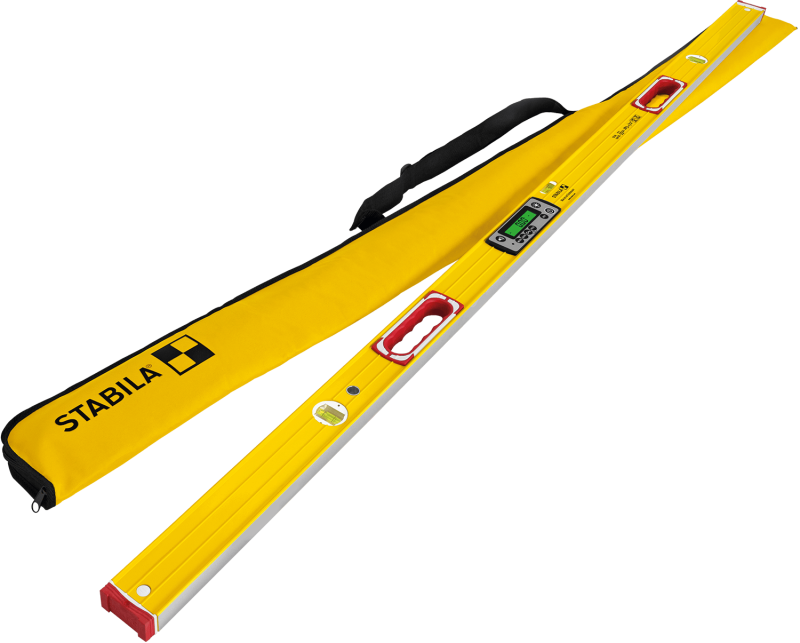

- Includes bag for safe transport.
CAL-FREE – electronic system that does not require calibrating even after being dropped or following temperature fluctuations.
Applications
- Particularly suitable for precise measurements in joinery and carpentry work as well as kitchens, staircase construction and excavation work.
- Ideal for contractors to check completed work: for example, to check the slope of a balcony.
- The perfect assistant in gardening and landscaping when creating a garden path with a slope.
9 in, ultra-compact, 100% digital – Especially suitable for aligning short components.
Technical data
Models
Length | UPC Barcode | Cat. # | |
---|---|---|---|
9 in | 089634395096 | 39509 | |
16 in | 089634395164 | 39516 | |
24 in | 089634395249 | 39524 | |
48 in | 089634395485 | 39548 | |
72 in | 089634395751 | 39575 |
